Aoralscan 3

Brand New Design
Fast Speed
High Accuracy
Powerful AI Process
Intuitive Communication

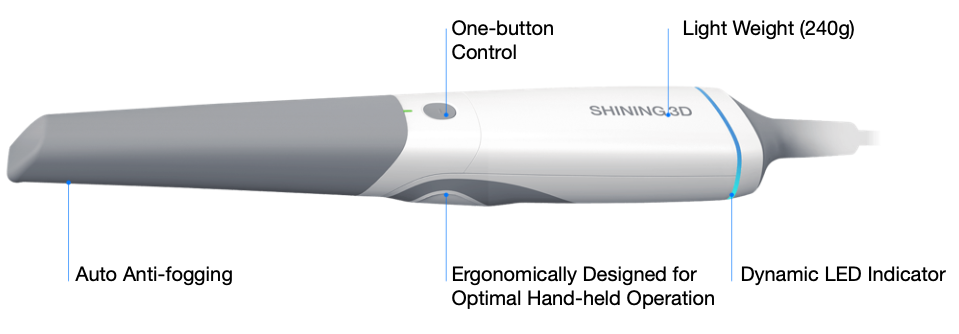

A handheld 3D pen with a white and gray design, featuring a one-button control, auto anti-fogging, ergonomic design, a thin tip, and a LED indicator, labeled with features and weight of 240 grams.

Diagram comparing the light projection patterns of two devices labeled Aoralscan 2 and Aoralscan 3, showing different coverage areas for each scanner.

58%

Greater Scan Field of View Than Aoralscan 2

16x12 mm

FOV (Standard Tip)

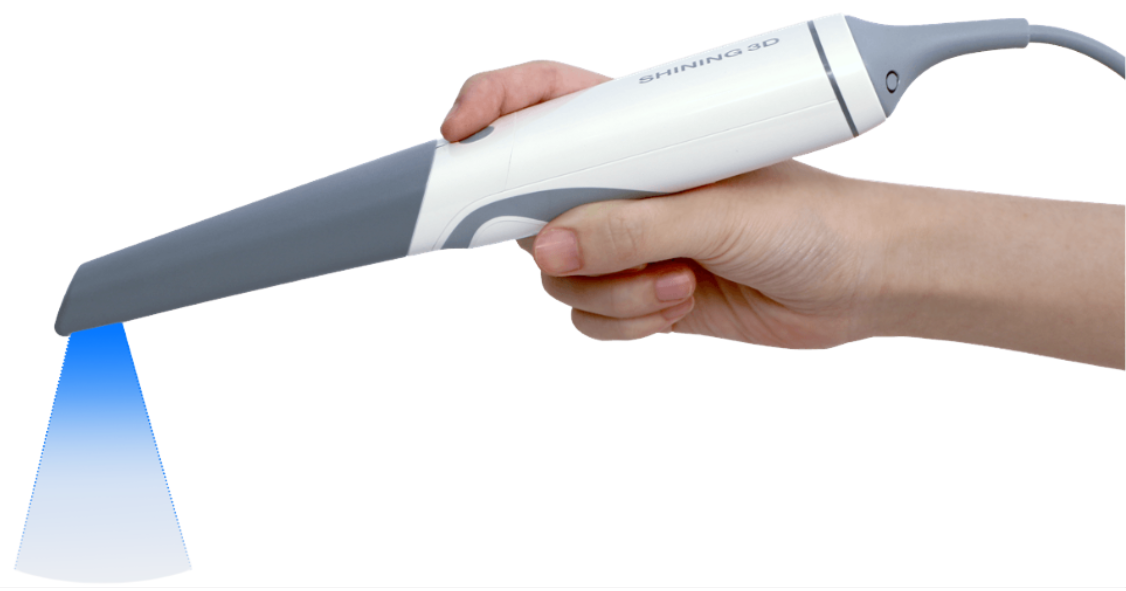

Close-up of a hand holding a handheld device emitting a blue light.

Up to 22 mm

Deep Scan Depth

Aoralscan 3 is suitable for various clinical scenarios including acquiring scan bodies and periodontal scans

Two white plastic tube-shaped devices with black screens on top, seen from the front.

2 Tip Sizes

Accommodates adults and children Anti-fogging

Up to 100 times

Autoclavable

Slimmer and 15% longer autoclavable scanner tips offer patients with more comfortable clinical experience.

Motion Sensing

Less Contact, Much Safer

Dentists can scan with minimal contact with the computer, ensuring a safe and efficient scan experience.

AI Scanning

Speed Up The Scan

Automatically identifies and filters out unnecessary soft tissue data during scanning resulting in a quicker and cleaner scan process.

25s

30% Faster

Single arch in 25s
Full arch in 1 min

Heard What Experts Say

Shining 3D Aoralscan 3

from A$16,990.00

Why Choose Aoralscan 3

The Aoralscan 3 delivers fast, accurate, and user-friendly digital impressions—making it ideal for clinics transitioning to digital dentistry or expanding their restorative workflows.

Exceptional Accuracy: Achieves scanning accuracy up to ±10 μm for highly precise restorations and implant work.
Faster Scanning: Captures full-arch scans in as little as 25 seconds, improving chairside efficiency.
Intuitive Operation: AI-powered auto alignment, motion-sensing controls, and real-time feedback make scanning smooth and simple.
Enhanced Comfort: Compact handpiece with ergonomic design for easier handling and better patient experience.
Seamless Integration: Compatible with major CAD/CAM and 3D printing systems for a complete digital workflow.
Free Lifetime Software Updates: Includes Shining 3D’s powerful design software suite and cloud-based case management system at no ongoing cost.
3-Year Repair Warranty: Ensures long-term reliability and peace of mind for your clinic.

The Aoralscan 3 combines speed, accuracy, and simplicity—bringing digital precision within reach of every practice.

Book a Demo

Technical Specifications

    Specification
    Details

    Scan Field
    Standard scanner tip: 16 mm × 12 mm × 22 mm
Mini scanner tip: 12 mm × 9 mm × 22 mm

    Scan Depth
    −2 to 20 mm from exit surface of tip

    Scan Principle
    Non-contact scanner with structured light

    Dimensions (L × W × H)
    281 mm × 33 mm × 46 mm

    Weight
    240 ± 10 g (without cables)

    Output
    STL, OBJ, PLY

    Connector
    USB 3.0

    Power Input
    12 V DC / 3 A

Recommended Mac Configuration

    Component
    Specification

    Processor
    Minimum: M2 (8-core CPU, 10-core GPU)

    Recommended: M1 Pro (8-core CPU, 14-core GPU) / M2 Pro (10-core CPU, 16-core GPU) / M1 Max (10-core CPU, 24 or 32-core GPU) / M3 (8-core CPU, 10-core GPU) / M4 (10-core CPU, 10-core GPU)

    RAM
    16 GB or higher

    Hard Drive
    SSD recommended: 1 TB

    Operating System
    macOS Ventura 13 or higher

    Interface
    At least one Type-C port

Recommended PC Configuration

    Component
    Specification

    CPU
    Intel Core i7-8700 or higher

    RAM
    Recommended: 32 GB

    Hard Drive
    256 GB SSD or above

    Graphic Card (GPU)
    NVIDIA RTX 2060 (6 GB DDR3) or higher

    Operating System
    Windows 10 Professional (64-bit) or later

    Screen Resolution
    1920 × 1080, 60 Hz or higher

    I/O Ports
    More than 2 Type-A USB 3.0 (or higher) ports
